Key Featuresl 2MP lens and high-performance 1/2.8 inch CMOSl Non Hisilicon SOC
l 26x optical zoom
l Automatic day/night switching function (ICR)
l Embedded auto focus algorithm, ensuring rapid and accurate focusing
l WDR, low light surveillance
l 3D noise reduction
l H.265 coding
l Custom OSD
l ONVIF
l Compact design
Note：

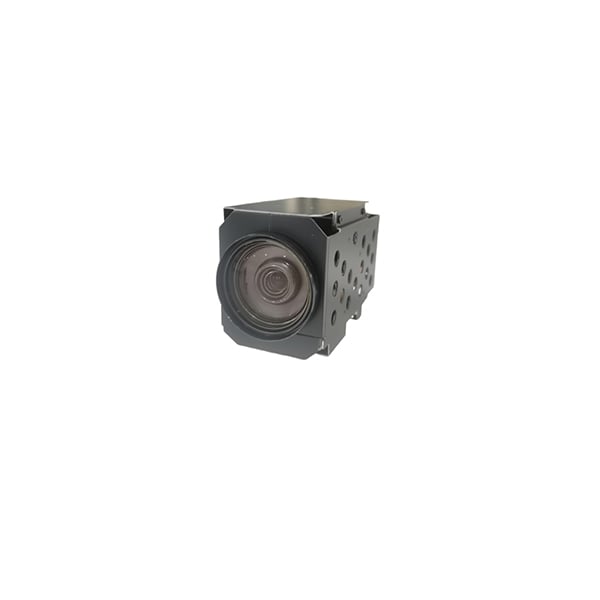

SOAR-NH2126 is a NDAA compliant 2MP network camera module that provides high color fidelity in low-light environment.
It is applicable in different high definition surveillance scenarios such as Safe Cities, roads, airports, schools, campuses, and energy facilities.
With its non hisilicon SOC， it can used in many overseas security projects.
Hot Tags: 2mp ndaa compliant camera, China, manufacturers, factory, customized, Speed Dome Thermal Ptz, Triped Mounted 4G Ptz, Dual Payload Thermal PTZ, HD IP Vehicle Mounted Ptz, 35x Optical Zoom Camera Module, 2mp IR Speed Dome
| Model No. | SOAR-CB2126NH |
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Min. Illumination | Color:0.001 Lux @(F1.5,AGC ON); |
| Black:0.0005Lux @(F1.5,AGC ON); | |
| Shutter Time | 1/25 to 1/100,000s |
| Day & Night | IR Cut Filter |
| Lens | |
| Focal Length | 5-130mm; 26x optical zoom; |
| Digital zoom | 16x digital zoom |
| Aperture Range | F1.5-F3.8 |
| Field of View | 56.9-2.9° (wide-tele) |
| Working Distance | 100mm-1000mm (wide-tele) |
| Zoom Speed | Approx. 3.5s (optical lens, wide-tele) |
| Compression | |
| Video Compression | H.265 / H.264 / MJPEG |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM |
| Image | |
| Resolution | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Image Setting | Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by client or browser |
| BLC | Support |
| Exposure Mode | Automatic exposure/aperture priority/shutter priority/manual exposure |
| Focus Control | Auto focus/one-time focus/manual focus |
| Area Exposure/Focus | Support |
| Defog | Support |
| EIS | Support |
| Day &Night | Auto(ICR) / Color / B/W |
| 3D Noise Reduction | Support |
| Image overlay | Support BMP 24 bit image overlay, optional region |
| ROI | ROI supports one fixed region for each three-bit stream |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NFS, SMB/ CIFS) |
| Protocol | ONVIF(PROFILE S,PROFILE G) ,GB28181-2016 |
| Smart Function | |
| Behavior analysis | Transboundary detection, area intrusion detection, entry/exit area detection, loitering detection, |
| Interface | |
| External interface | 36pin FFC (Ethernet,RS485,RS232,CVBS,SDHC,Alarm In/Out) |
| General | |
| Working Environment | -40°C to +60°C , Operating Humidity≤95% |
| Power supply | DC12V±25% |
| Consumption | 2.5W MAX (ICR,4.5W MAX) |
| Dimensions | 97.5*61.5*50mm |
| Weight | 300g |
-
