Sour - th640 - uav

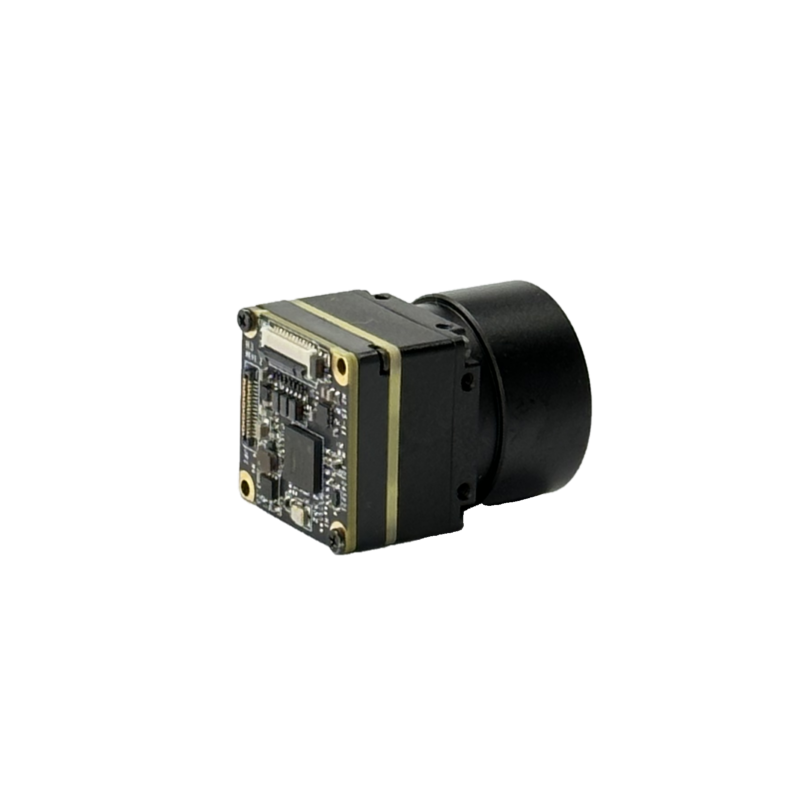

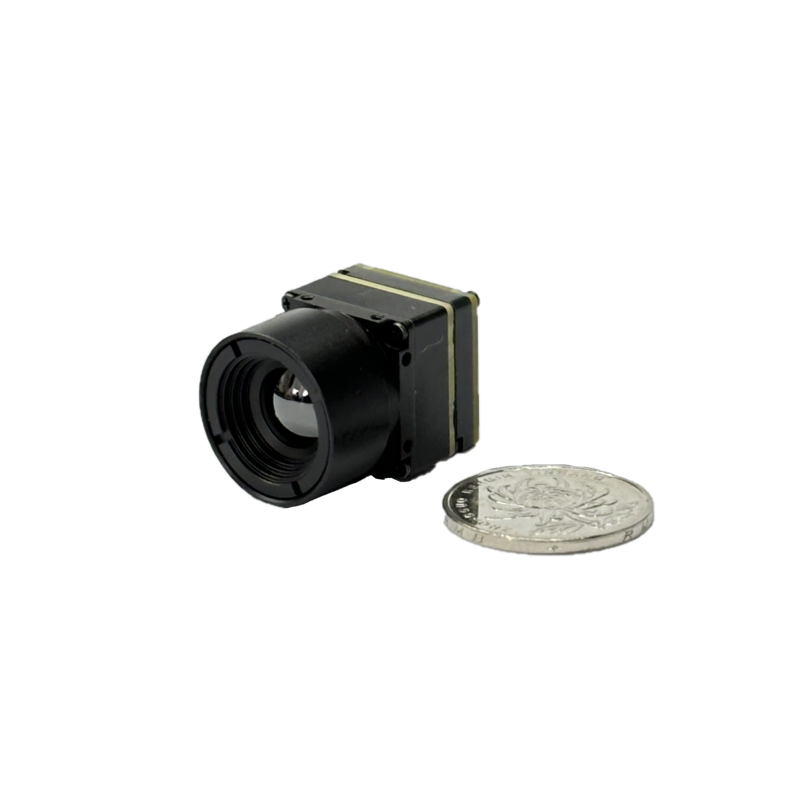

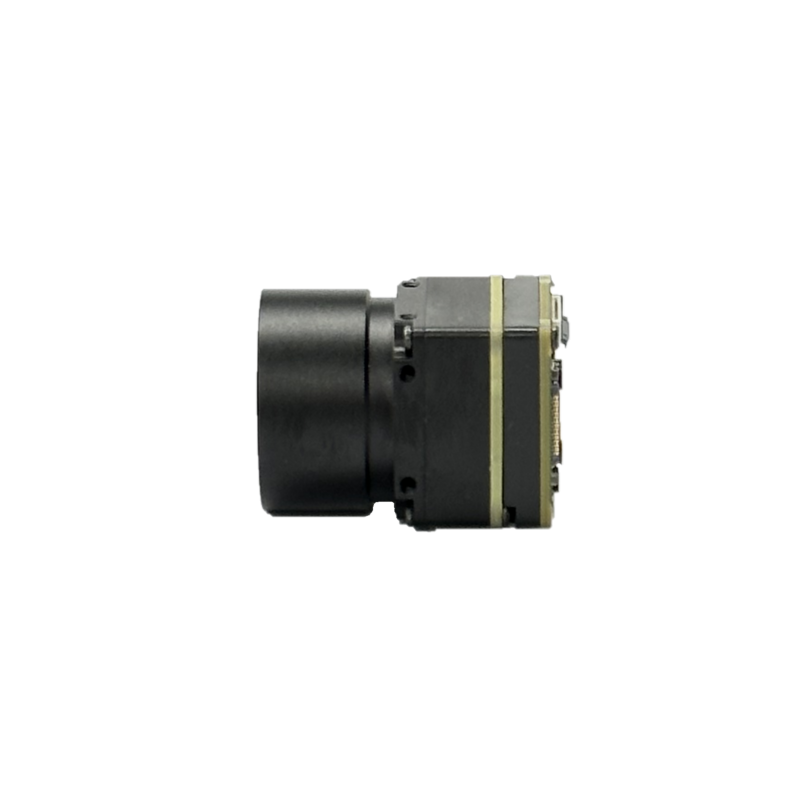

Uav mini 640 * 512 kamera yubushyuhe

Gufata ibisubizo byo murugo, amaso yawe - th640 - uav ibiranga netd imanuke yo munsi cyangwa ingana na (≤) 35 MK. Gushyigikira Uruhushya kandi rufite amashusho akungahaye. Yubatswe - Muguriza amajwi kandi module ifite ubwenge yongera imbaraga zuruzitiro rwa elegitoronike, umusaraba - Gutahura imipaka no gutabaza.

LVCMOS, BT.656, Bt.1120, LVD, Video ya Analog hamwe nibindi bisohoka hanze yimyanda irashobora gutangwa kubakoresha. Irashobora guhuzwa mu buryo butaziguye igenzura ry'umutekano rusange - Ibyuma byanyuma kandi byoroshye kubakiriya bakubwira vuba uburyo bwo gukoresha uburyo. Nubwoko bwo gutabaza bwatejwe imbere ibisabwa byinjira byaho, umutekano wumujyi, umutekano wa gari ya moshi, umutekano wumupaka nizindi nganda

Ohereza imeri

Ibisobanuro birambuye

Ibipimo

Urwego

Ibicuruzwa

Ikintu cy'ingenzi

·?Ubwumvikane bwambaye ubusa

·?Inkunga Yuzuye - Gupima ubushyuhe nubushyuhe bwinzobere
·?Shyigikira uvc protocole
·?Shyigikira igipimo cy'ubushyuhe 2 kiringaniye: - 20 ℃ ~ 150 ℃ na 100 ℃ ~ 550 ℃
·?Gupima ubushyuhe Ukuri: ± 2 ℃ cyangwa ℃ cyangwa ± 2% yo gusoma (icyaricyo cyose agaciro ntarengwa)
·?Icyitegererezo kirahuye nigishushanyo kandi byoroshye guhuza.
·?Ibisabwa: Kwishyira hamwe kwa robo, guhuza umuriro, guhuza umutekano, nibindi
·?9mm, 13mm, 25mm lens bidashoboka

Ubushyuhe
Ubwoko bwa sensor	Vox
Ingano ntarengwa	600 × 512
Ingano ya Pixel	12μm
Itsinda ryitangiriro	8 ~ 14 μM
Netd	≤35Mk (@ 25 ° C, f # 1.0)
Lens	9mm
Umwanya wo kureba	48.3 ° (H) X 38,6 ° (v), 62.4 ° (D)
Ishusho
Erekana igisubizo	600 × 512
Igipimo	30hz
indorerwamo	inkunga
Kunanirwa	inkunga
Uburyo bw'ibara	Shyigikira uburyo 15 harimo ashyushye yera, umukara ashyushye, Fusion 1, umukororombya, Frousion 1, Icyuma gitukura 1, Icyuma gitukura 1, nibindi
Itandukaniro	inkunga
Sisitemu ikora
Imigaragarire	USB2.0
Rusange
ubushyuhe bwo kubika	- 45 ° C ~ + 75 ° C.
Ububiko bwububiko	<30% rh
Ubushyuhe bukora	- 40 ° C ~ 70 ° C.
Gukora Ubushuhe	<30% rh
uburemere	≤23g
ingano	29.8mm * φ21.8
imbaraga	≤0.7W
kwinjiza imbaraga	DC 5V ± 5%
Gupima ubushyuhe
Amategeko yo gupima ubushyuhe	Uburyo busanzwe: Gupima Ubushyuhe Bwuzuye
Ibisohoka	Uburyo bw'impuguke: amanota 10, agasanduku 10, umurongo 1, hamwe n'amategeko yo gupima ubushyuhe
Urwego rwo gupima ubushyuhe	Inkunga Yuzuye - Amashusho Yubushyuhe Ibisohoka
Intera yubushyuhe	- 20 ° C ~ + 150 ° C na 100 ° C ~ 550 ° C.
Gupima ubushyuhe	3 - 18m irashobora gushyirwaho
